2024 HONDA M/C CR125FBR CRF125FBR

WOW ONLY 1 OWNER FULLY INSPECTED AND RECONDITIONED, ADDED HAND GUARDS READY TO GO

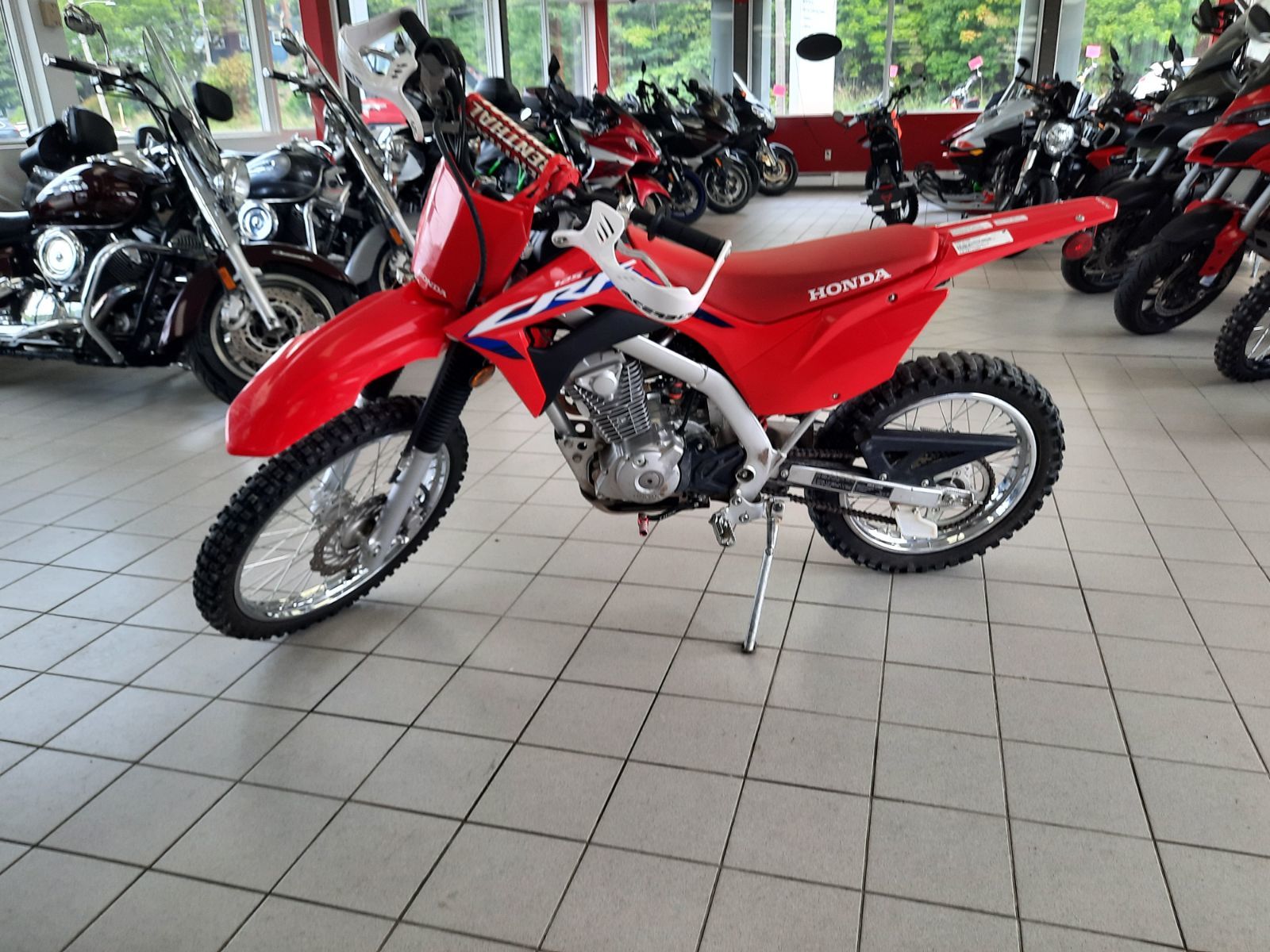

Here’s an image of the 2024 Honda CRF125F Big Wheel (CRF125FBR)—a rugged, stylish off-road bike with the taller stance and larger wheels suited for taller riders or those looking for more ground clearance.

Overview of the 2024 Honda CRF125F Big Wheel (CRF125FBR)

Engine & Drivetrain:

• Air-cooled, single-cylinder, four-stroke 125 cc engine

• Bore & stroke: 52.4 mm × 57.9 mm, compression ratio 9.0:1

• PGM‑FI electronic fuel injection with 22 mm throttle body

• 4-speed transmission with manual clutch

• Final drive: #428 chain, 13T/49T

Suspension & Handling:

• Front: 31 mm leading‑axle fork, ~151 mm (5.9 in) travel

• Rear: Pro-Link® Showa single-shock, ~168 mm (6.6 in) travel

Brakes & Tires:

• Front: 220 mm disc brake

• Rear: drum brake (single-leading‑shoe)

• Tires: Front 70/100‑19, Rear 90/100‑16

Dimensions & Capacity:

• Seat height: ~785 mm (30.9 in)

• Ground clearance: ~260 mm (10.2 in)

• Wheelbase: ~1,255 mm (49.4 in)

• Fuel capacity: 3.7 L (includes 0.7 L reserve)

• Curb weight: ~90 kg (198 lb) ready to ride

• Color: Extreme Red (Honda’s signature)

• Warranty: 6‑month unlimited-mileage transferable; extended coverage via Honda Plus available

Emissions:

• Meets CARB and EPA off‑road emissions standards

How It Differs from the Standard CRF125F

• Larger wheels and higher seat height (taller by about 2 inches) for enhanced ground clearance and better fit for taller riders

• Shares the same engine, chassis, and essential ride features as the standard CRF125F. Just retuned to suit bigger size and rider stance.
