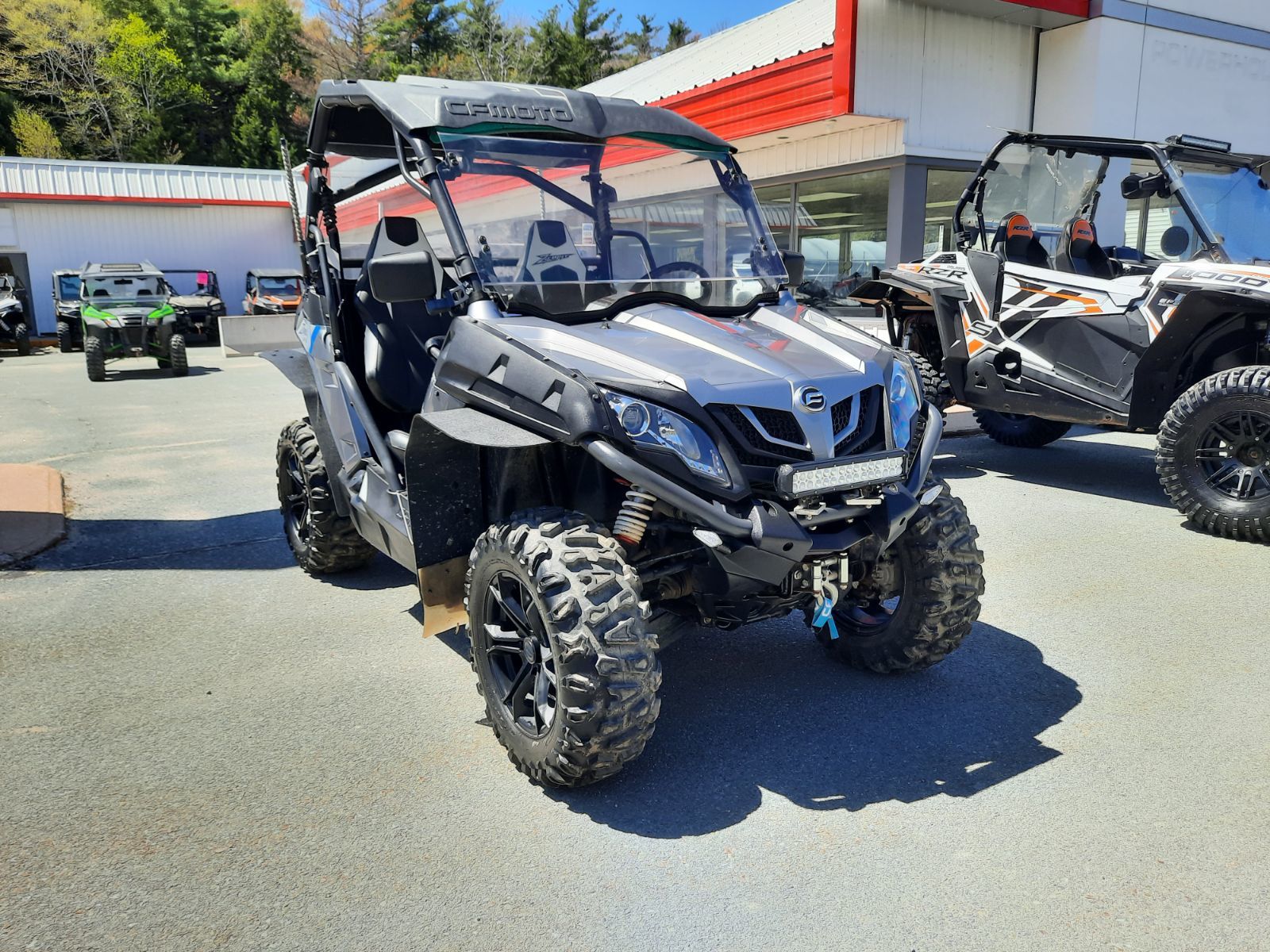

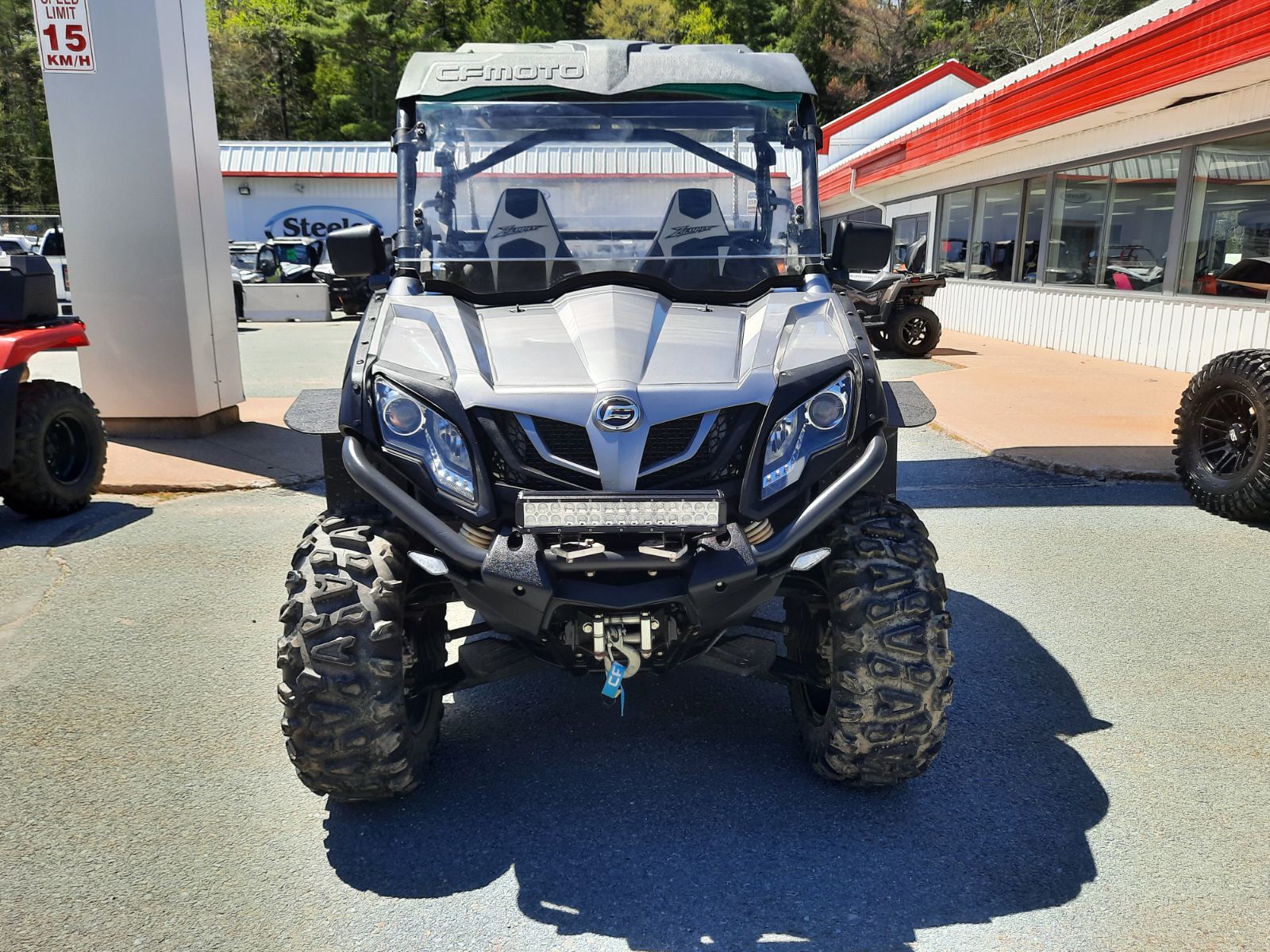

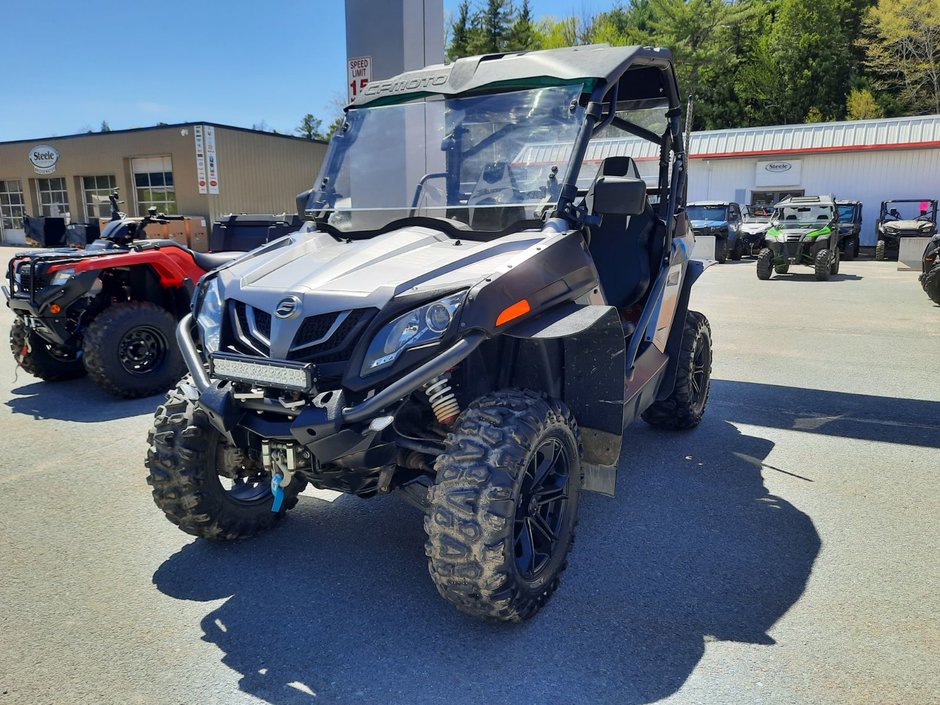

2022 CFMOTO Zforce 500 trail 500 TRAIL

Engine: 495 cc fuel-injected single‑cylinder, liquid-cooled SOHC (38 hp @ 6,800 rpm; 32 ft·lb torque @ 5,800 rpm)

Transmission: CVTech CVT (P/R/N/H/L) with engine braking; shaft drive

Drivetrain: Selectable 2WD/4WD with front locking differential

Steering: Electric Power Steering (EPS), tilt-adjustable

Front/rear suspension: Independent double A-arm

Front shock travel: ~6.3" (160 mm); Rear travel: ~7.8" (198 mm) with compression/rebound adjustment

Ground clearance: 11.2" (284 mm)

Tires: 26 × 9‑14 (front) and 26 × 11‑14 (rear) on 14″ alloy wheels

Hydraulic disc brakes on all four wheels, plus engine braking via CVT

Length × Width × Height: 113" × 50" × 70"

Wheelbase: 80" (2,032 mm)

Dry Weight: ~1,228 lb (557 kg)

Fuel capacity: 6.5 gal (24.6 L)

Winch: 3,000 lb

Frame: ROPS-certified roll cage, brush guards front and rear

Convenience: Multi-function digital dash, 2″ receiver hitch, 12 V outlet, tilt steering, side nets
