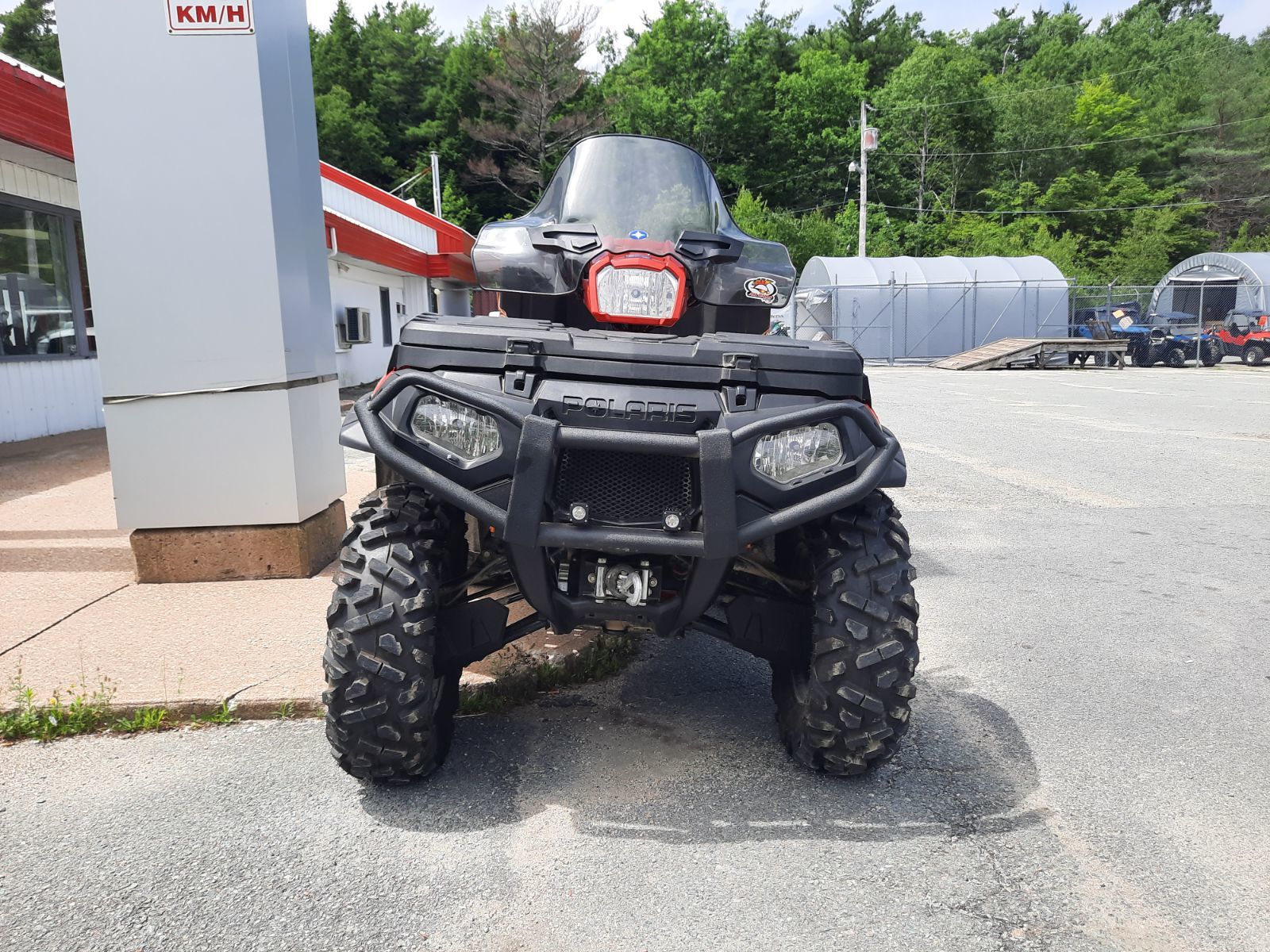

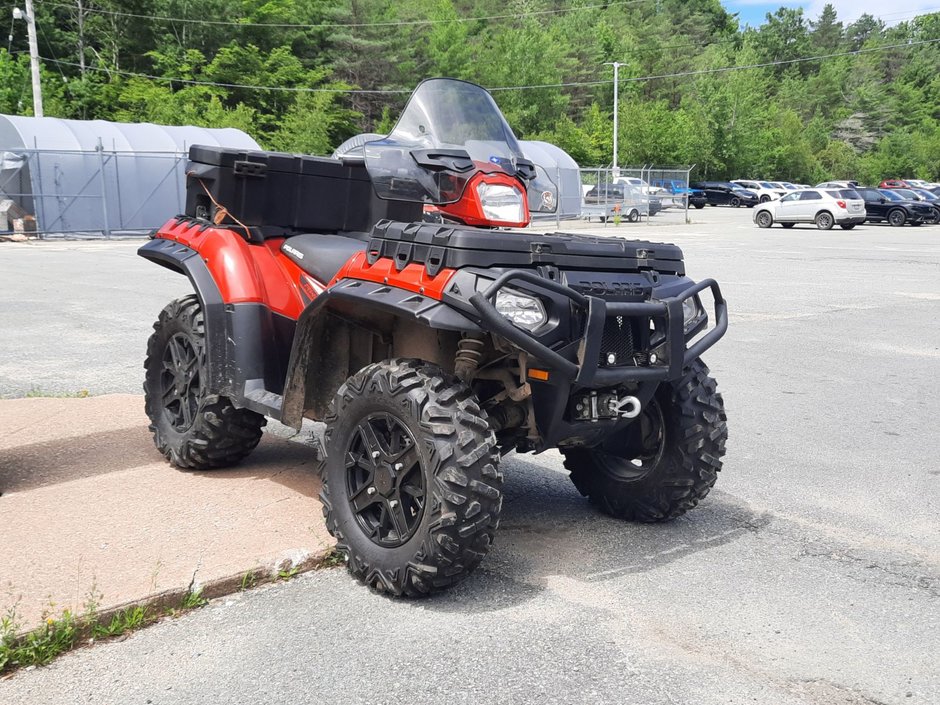

2016 Polaris Sportsman 1000 EFI

Engine & Drivetrain

• ProStar 1000 twin-cylinder EFI engine (952 cc), producing ~88 hp Liquid-cooled, 4‑stroke, SOHC configuration

• Transmission: Continuously Variable Transmission (CVT) with Hi/Lo/P/R/N, shaft primary drive On-demand True AWD with high-performance, quick-engage front-drive Engine Braking System (EBS) with Active Descent Control (ADC) for controlled deceleration

Chassis & Suspension

• Front: Dual A‑arm independent with ~9 in travel (229 mm) Rear: Rolled IRS with ~10.3 in travel (260 mm) .

• Ground clearance: ~11.5 in (290 mm)

• Featuring 4‑wheel hydraulic disc brakes, power steering (EPS), and anti-kickback steering

Dimensions & Capacities

• Dry weight: ~822 lb (374 kg)

• Fuel capacity: ~5.25 gal (19.9 L)

• Towing capacity: 1,500 lb (680 kg)

• Rack capacities: Front 120 lb; Rear 240 lb

• Wheelbase: 53 in (1346 mm), seat height ~37 in (940 mm)
