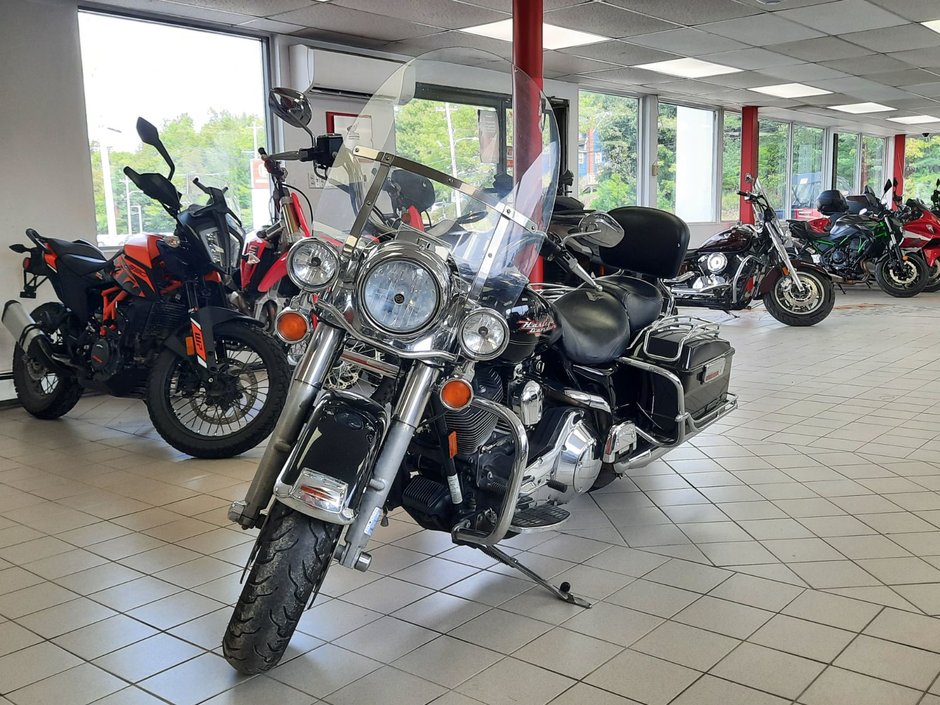

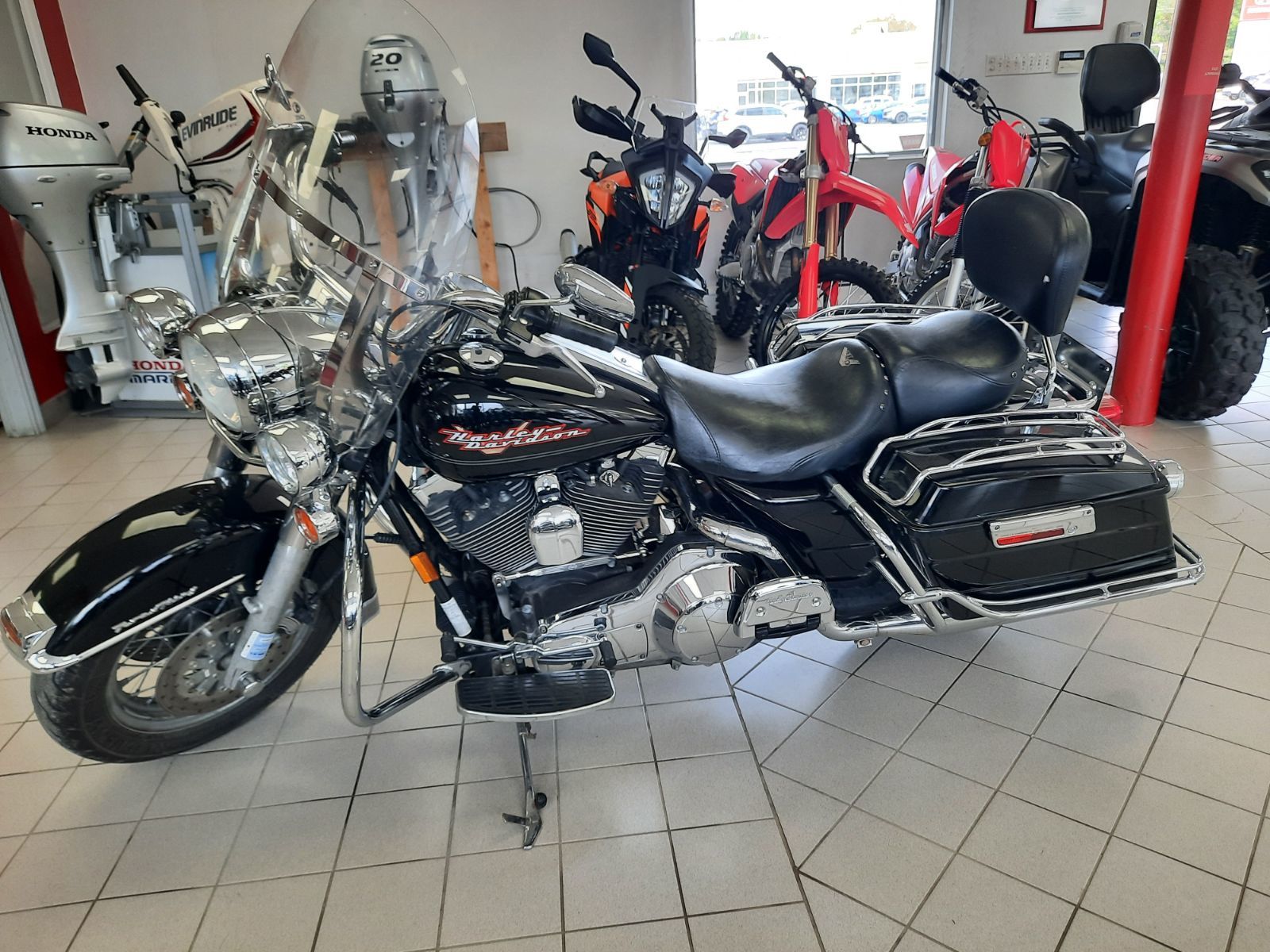

2004 Harley Davidson Motorcycle Road King FLHR

Overview & Key Specs

Model Profile

The FLHR, commonly known as the Road King, is part of Harley-Davidson’s Touring lineup. It’s defined by its classic styling—complete with a chrome nacelle, detachable windshield, hard saddlebags, and an iconic tank-mounted speedometer

Powertrain

• Engine: Air-cooled Twin Cam 88® 45° V-Twin

• Displacement: ~1450 cc (88 cu in)

• Power & Torque: ~86 lb-ft (117 Nm) @ ~3500 rpm (torque)~67 hp (50 kW) @ ~5200 rpm (power)

• Induction: Offered in carbureted and electronic sequential port fuel injection (ESPFI) versions

• Compression: 8.9:1

Transmission & Drive

• Gearbox: 5-speed manual

• Final Drive: Belt, paired with a chain-driven primary

• Gear Ratios: 1st 10.110, 2nd 6.958, 3rd ~4.95, 4th ~3.86, 5th 3.150

Chassis & Suspension

• Frame: Steel, double-cradle with reinforced swingarm

• Front: ~41 mm telescopic fork (non-air) with ~116 mm traveL

• Rear: Twin air-adjustable shocks (~76 mm travel)

Brakes & Wheels

• Front: Dual 292 mm discs with 4-piston calipers

• Rear: Single 292 mm disc, 4-piston caliper

• Wheels/Tires: Typically 16" cast alloy; laced spoke option available
