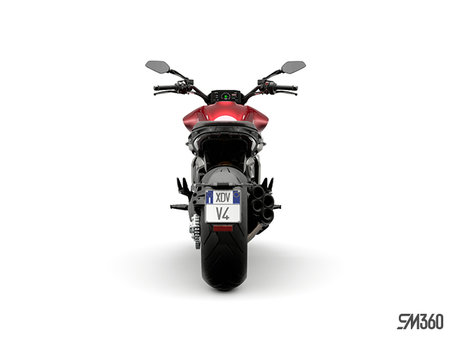

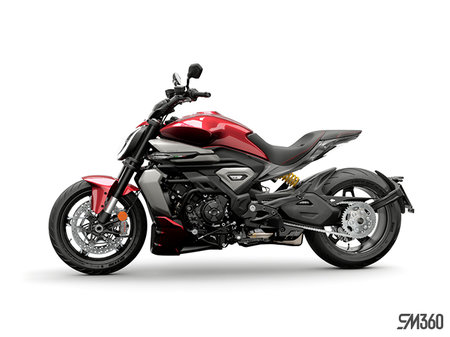

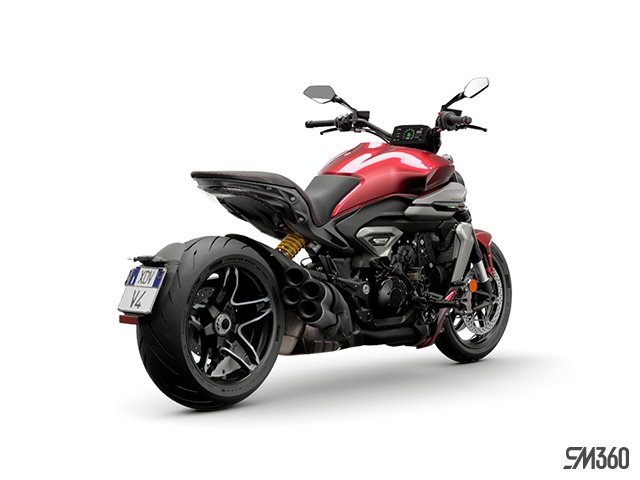

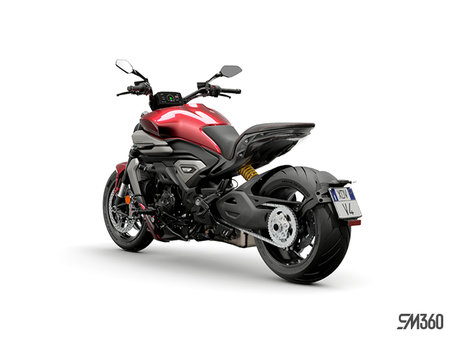

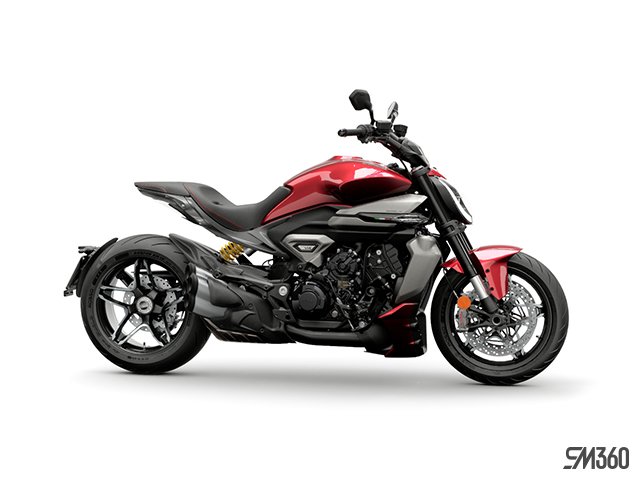

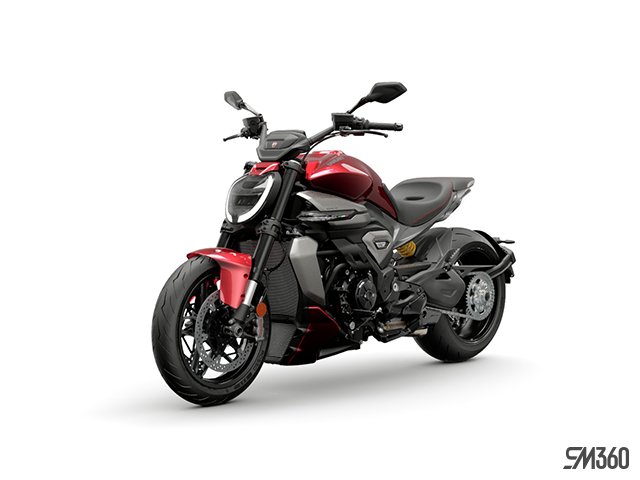

2025 Ducati XDiavel V4 at Steele Recreation

Standard

• Primary drive : Straight cut gears; Ratio 1.80:1
• Ratio : 1=40/13, 2=36/16, 3=34/19, 4=31/21, 5=29/23, 6=27/25
• Final drive : Chain, front sprocket z16, rear sprocket z43
• Clutch : Hydraulically controlled slipper and self-servo wet multiplate clutch
• Gearbox : 6 speed with Ducati Quick Shift up/down 2.0

Standard

• Frame : Aluminum monocoque frame
• Front suspension : Ø 50 mm fully adjustable usd fork
• Front Wheel : Light alloy cast, 3,5 in x 17 in
• Front Tire : Pirelli Diablo Rosso III, 120/70 ZR17
• Rear suspension : Fully adjustable monoshock, aluminium single-sided swingarm
• Rear Wheel : Light alloy cast, 8,0 in x 17 in
• Rear Tire : Pirelli Diablo Rosso III, 240/45 ZR17
• Wheel Travel (Front/Rear) : 120 mm / 145 mm (4.7 in / 5.7 in)
• Front Brake : 2 x Ø 330 mm semi-floating discs, radially mounted Brembo Stylema monobloc 4-piston callipers, radial master cylinder PR16/19, Cornering ABS
• Rear Brake : Ø 265 mm disc, Brembo 2-piston floating calliper, Cornering ABS
• Instrumentation : Djital unit with 6.9'' TFT color display and Optical Bonding 1,280 x 480 px resolution, 8:3 Ratio

Standard

• Safety Equipment : Riding Modes, Power Modes, Cornering ABS, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light, Ducati Brake Light
• Standard Equipment : Ducati Quick Shift, Ducati Power Launch, Cruise control, Hands-Free, 6.9'' in TFT colour display, Ducati Multimedia System, Backlit handlebar switches, Full-LED lighting system
• Ready for : Turn-by-Turn navigation system,Mid footpes Kit

Standard

• Number of Seats : 2
• Fuel Tank Capacity : 20 l (5.3 US gal)
• Dry Weight : 229 kg (505 lb)
• Seat Height : 770 mm (30.3 in)
• Wheelbase : 1,620 mm (63.8 in)
• Rake : 29°
• Trail : 124 mm (4.9 in)

Standard

• Warranty : 24 months, unlimited mileage
• Maintenance service intervals :15,000 km (9,000 miles) / 24 months
• Valve Clearance Check : 60,000 km (37,000 miles)

Standard

• Engine : V4 Granturismo, V4 - 90°, 4 valves per cylinder, counter-rotating crankshaft, Twin Pulse firing order, liquid cooled
• Displacement : 1,158 cc (71 cu in)
• Bore x Stroke : 83 mm x 53.5 mm
• Compression Ratio : 14.0:1
• Power : 168 hp (124 kW) @ 10,750 rpm
• Torque : 12.8 kgm (126 Nm, 93 lb ft) @ 7,500 rpm
• Fuel Injection : Electronic fuel injection system, Øeq 46 mm elliptical throttle bodies with Ride-by-Wire system
• Exhaust : Stainless steel exhaust muffler with 4 exit pipes
